MAFI - Swedish assembly system for solar cells
MAFI's Swedish fixings for solar cells are a complete collection of products and solutions that are specially designed to safely and stably mount solar cell systems in Sweden. The range includes different types of fasteners, braces, rails and clamps that are developed to fit different types of roofs and substrates.
MAFI - Multi clamp (91230)
MAFI - Multi clamp (91230) Multi Clamp is an innovative product specially designed to securely fasten solar panels to Solar Rail using 9843 HEX Locker 8mm bits. The clamp is equipped with a clamping zone of 50 mm to meet the requirements of various solar panel manufacturers and has a...
MAFI - Rail joint (912314)
MAFI - Rail joint (912314) Rail Joint for Solar Rail from MAFI is designed to join two Solar Rails using 4x Flange Bolt M8x20 and 4x 9839 Speed Clip and screwed with 9843 HEX Locker 8mm bits. The rail joint for Solar Rail is manufactured by Magnelis. Please note: MAFI...
56,00 kr

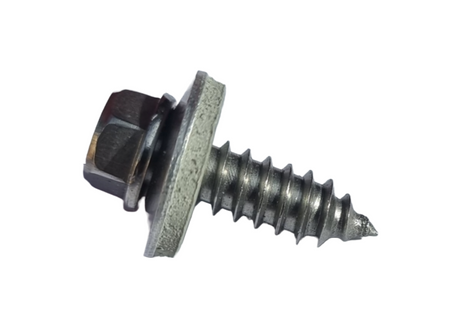

MAFI - Sheet metal screw 6.3x19 (9845)
MAFI - Sheet metal screw 6.3x19 (9845) Screw the dimensions 6.3x19 mm from MAfi for installation of their mounting system on tp20 metal roofs or Plegel roofs. Installation manual Sku: 9845 MAFI's attachments for Swedish roof MAFI's Swedish fixings for solar cells are a complete collection of products and solutions...
4,00 kr

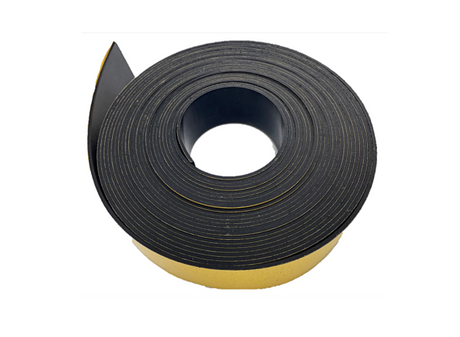

MAFI - EPDM 10 meters 40mm x 2mm (9837)
MAFI - EPDM 10 meters 40mm x 2mm (9837) EPDM is used as a waterproofing on Solar Rail when mounting on tp20 metal roofs. The material is robust so as not to lose performance in the Nordic climate. EPDM can be attached along the entire length of the Solar Rail...
833,00 kr
MAFI - Rail Solar Rail 2475mm (913310)
MAFI - Rail Solar Rail 2475mm (913310) Solar Rail is designed to be mounted on various MAFI roof brackets or directly on trapezoidal sheet with EPDM (MAFI 9837). Solar Rail is manufactured by Magnelis® and is IP protected. Solar Rail is designed to be used on all types of roofs,...
200,00 kr
MAFI - Rail Solar Rail 3600mm (913311)
MAFI - Rail Solar Rail 3600mm (913311) Solar Rail is designed to be mounted on various MAFI roof brackets or directly on trapezoidal sheet with EPDM (MAFI 9837). Solar Rail is manufactured by Magnelis® and is IP protected. Solar Rail is designed to be used on all types of roofs,...
234,00 kr
MAFI - End cover (91250)
MAFI - End cover (91250) The end cap is designed to cover the end of the MAFI Solar Rail and comes in black color for optimal aesthetics. It has grooves on the inside that act as locking against the rails and has an integrated drainage hole for rainwater. To achieve...
26,00 kr
MAFI - Hex Locker 8mm (9851)
MAFI - Hex Locker 8mm (9851) HEX Locker 8 mm is a special mounting base for MAFI Solar's various mounts. It fits fasteners with a HEX head size of 8mm. Installation manual Sku: 9851 MAFI's attachments for Swedish roof MAFI's Swedish fixings for solar cells are a complete collection of...
100,00 kr
MAFI - Speed clip (9839)
MAFI - Speed clip (9839) The Mafi Speed Clip is a specially designed M8 nut designed to easily attach to various MAFI roof brackets and ensure easy installation with just one tool. Used to be able to mount joints etc. on MAFI's rails. The Speed Clip can be easily slid...
7,00 kr
MAFI - Flange Bolt (9834)
MAFI - Flange Bolt (9834) Used in conjunction with the Mafi Speed Clip which is a specially designed M8 nut designed to easily attach to various MAFI ceiling mounts ensuring easy installation with just one tool. Used to be able to mount joints etc. on MAFI's rails. Installation manual Sku:...
4,00 kr
Manual assembly MAFI
Iinstructions for assembly on tiled roofs or concrete pans. See attached PDF.
Need help?
Send us your information about your roof and we can help you produce a complete list of materials for you. There you will get all the material you will need for your installation.
